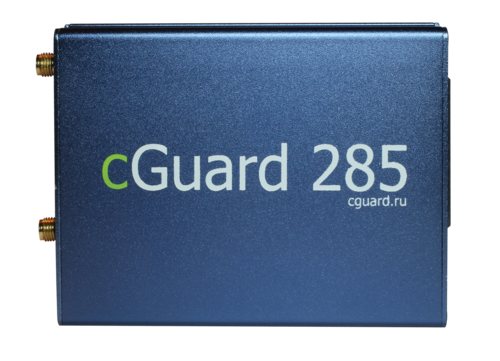

cGuard 285
Connection Parameters
| Server Address | server.gp-s.net |
|---|---|
| Server IP | 136.244.102.118 |
| Server Port | 47729 |
This product is compatible with our system, if you bought new or already using another gps tracking software you can transfer your device to our system online automatically
Description
cGuard 285 is GPS/GLONASS tracker designed especially for trucks, vans and public or private transport buses. This device has a high level of functionality.
It has external GNSS and GSM antennas and a full set of different interfaces like RS232, R485, 1-wire and CAN. This device also has a built-in accelerometer, gyroscope, battery and an emergency button.
The terminal can provide work of voice communication and auto information systems.
| Purpose | Vehicle |  |
| Installation | Professional | |
| Size | 100x22x74.5 mm (3.94×0.87×2.93 in) | |
| Weight | 200 g (7.05 oz.) | |
| Internal antenna (GNSS) | |
|
| External antenna (GNSS) | |
| Cellular network type | GSM 900/1800 | |
| Cellular network generation | 2G | |
| Internal antenna (Connection) | |
|
| External antenna (Connection) | |
| 1-Wire interface | |
|
| Number of RS232 interfaces | 1 | |
| RS232 interface | |
|
| RS485 interface | |
|
| Discrete inputs |  |
|
| Analog inputs | |
|
| Impulse inputs | |
|
| Frequency inputs | |
|
| Number of inputs (all types) | 7 | |
| Outputs | |
|
| Number of outputs | 3 | |
| Built-in battery | |
|
| Battery capacity | 900 mAh | |
| External power cut off | |
|
| Battery low |  |
|
| Input change | |
| Network signal level | |
|
| GNSS signal level | |
|
| GNSS satellites fixed | |
| CAN/OBDII reader type | External | |
| Server connection setup over SMS | |
|
| Remote device configuration | Yes (over GPRS) | |
I have bought this product from another supplier can i use your system?
Yes exactly. You can use gp-s.net web application and mobile apps with all supported services!
How to activate or transfer my device?
Dont worry about this, we have automated activation system, just turn on your device with your own sim card we will complete the setup automatically
How long take the activation?
Its takes only few minutes, you can make instant activation, register and pay credit online,
