Naviset GT-20
Connection Parameters
| Server Address | server.gp-s.net |
|---|---|
| Server IP | 136.244.102.118 |
| Server Port | 47754 |
This product is compatible with our system, if you bought new or already using another gps tracking software you can transfer your device to our system online automatically
Description

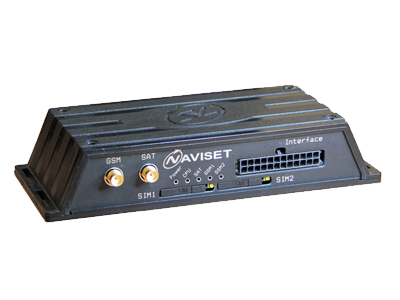

Naviset GT-20 is AVL terminal with a wide range of options. It is designed for advanced fleet management, but also can be used for personal purposes.
It is equipped with internal and external GPS/GLONASS and GSM antennas and support a work in Wi-Fi networks. The device has a lot of inputs (up to 5) and outputs (up to 3) including RS232, RS486, 1-wire interfaces and CAN port.
The Naviset GT-20 model provides more inputs and outputs than older GT-10. In the other cases, it is very similar.
| Purpose | Vehicle |  |
| Installation | Professional | |
| Size | 150x65x29 mm (5.91×2.56×1.14 in) | |
| Internal antenna (GNSS) | |
|
| External antenna (GNSS) | |
| Cellular network type | GSM 900/1800 | |
| Internal antenna (Connection) | |
|
| External antenna (Connection) | |
| 1-Wire interface | |
|
| Number of RS232 interfaces | 2 | |
| RS232 interface | |
|
| RS485 interface | |
|
| Discrete inputs |  |
|
| Analog inputs | |
|
| Frequency inputs | |
|
| Number of inputs (all types) | 8 | |
| Number of outputs | 4 | |
| Built-in battery | |
|
| Battery capacity | 1100 mAh | |
| Input change | |
|
| Antenna cut off | |
| GNSS signal level | |
| Server connection setup over SMS | |
|
| Remote device configuration | Yes (over GPRS) | |
| Remote outputs control | Yes (over GPRS) | |
I have bought this product from another supplier can i use your system?
Yes exactly. You can use gp-s.net web application and mobile apps with all supported services!
How to activate or transfer my device?
Dont worry about this, we have automated activation system, just turn on your device with your own sim card we will complete the setup automatically
How long take the activation?
Its takes only few minutes, you can make instant activation, register and pay credit online,
