TopFlyTech T8603
Connection Parameters
| Server Address | server.gp-s.net |
|---|---|
| Server IP | 136.244.102.118 |
| Server Port | 47744 |
This product is compatible with our system, if you bought new or already using another gps tracking software you can transfer your device to our system online automatically
Description

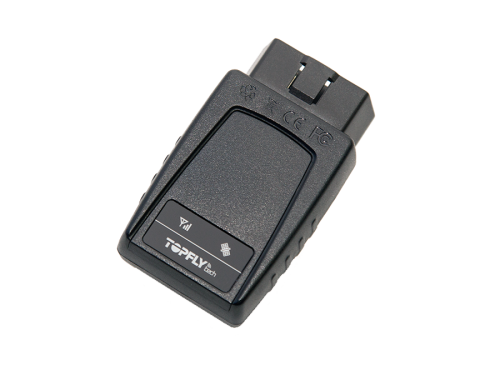

TopFlyTech T8603 is a very simple OBDII-type tracker. It does not read any OBD II information, but it uses power supply from OBD II port. No special skills required for the installation ? just plug it to the car diagnostic port.
Location and tracking
T8603 model is embedded with GPS and doesn?t have support of GLONASS or alternative systems. It neither supports Assisted GPS technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).
OBDII data reading
T8603 is a simple tracker. It only gets power supply from OBDII port, but it does not read any data from vehicle CAN bus or K-Line. With T8603 you will be unable to get telemetry from onboard diagnostic system, ?heck engine lamp (MIL) or DTC codes.
Mobile networks
With Quad-band GSM module T8603 can be operated in 2G networks all over the world.
Power supply
T8603 uses OBD II Connector Type B (9 of 16 pins used) and voltage range 6-36V, which makes possible to install T8603 both on cars and trucks.
T8603 also features a built-in rechargeable backup battery. When fully charged it ensures about 1-2 hours of device operation (in normal conditions).
When being unplugged from the OBDII socket the device sends notification to server.
Remote management
T8603 tracker can be fully controlled over GPRS, including configuration of tracking modes. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back.
It supports remote configuration of APN settings, server address and port by SMS.
LED Indication
T8603 has two LEDs
Red LED indicates GSM/GPRS mode
Blue LED indicates GPS receptio
The light goes out automatically in five minutes after the device is plugged into OBDII port.
Additional notes
In some cars it?s not possible to read the Ignition state from the OBDII port. Then T8603 uses proprietary algorithm based on multiple parameters to evaluate the Ignition is ON with 98% accuracy. And the same algorithm it uses to detect the car engine is OFF and reduces the power consumption.
Compared to other OBDII trackers, T8603 seems a little longer. It might cause the device don?t fit the interior details in some cars. To overcome this problem an OBDII extension cable (optional accessory) can be used.
To switch device off (even with charged battery) just remove the SIM card. The device will switch off in 5-10 seconds.
| Purpose | Vehicle |  |
| Installation | Not required | |
| Special form factor | OBDII Dongle | |
| Size | 63x47x26.5 mm (2.48×1.85×1.04 in) | |
| Weight | 60 g (2.12 oz.) | |
| GPS | |
|
| Internal antenna (GNSS) | |
|
| External antenna (GNSS) | |
|
| Assisted GPS | |
| Cellular network type | GSM Quad Band | |
| Cellular network generation | 2G | |
| Internal antenna (Connection) | |
|
| External antenna (Connection) | |
| ACC/Ignition input |  |
|
| Discrete inputs | |
|
| Outputs | |
| Built-in battery | |
|
| Battery capacity | 280 mAh | |
| Emergency button | |
|
| Detach sensor | |
|
| Non-volatile memory | |
| Fuel level sensor reading | |
|
| Fuel temperature sensor reading | |
|
| Driver ID reading | |
|
| Engine block special control | |
|
| Emergency button | |
| Tracking modes | Continuous | |
| Smart power consumption | |
|
| Odometer | |
|
| ECO driving | |
| External power cut off | |
|
| Battery low | |
|
| Device switched on/off | |
|
| Towing | |
|
| Fall/Shake | |
| Network signal level | |
|
| GNSS signal level | |
|
| GNSS satellites fixed |  |
|
| External power source voltage | |
| CAN/OBDII reader type | |
|
| DTC codes reading | |
|
| Check engine light | |
| Server connection setup over SMS | |
|
| Remote device configuration | Yes (over GPRS) | |
| Forced GNSS location update over SMS | |
|
| Forced LBS location update over GPRS | |
|
| Message exchange format | BINARY | |
| Firmware update OTA | |
| CE | |
|
| FCC | |
